SensorsAvailable 2027
Well Depth Sounders
Track water depth alongside water usage. Currently in prototype. Launching in 2027.
SensorsPatent pendingLimited 2026
Chemical & pH Sensors
Sapphire Ag goes beyond flow measurement delivering real-time chemical and environmental insights, providing deeper visibility into water quality and system conditions.
Overview
Sapphire Ag solid-state pH and chemical sensors deliver accurate, reliable, and continuous measurements in a compact, scalable, small-footprint stainless cylinder.

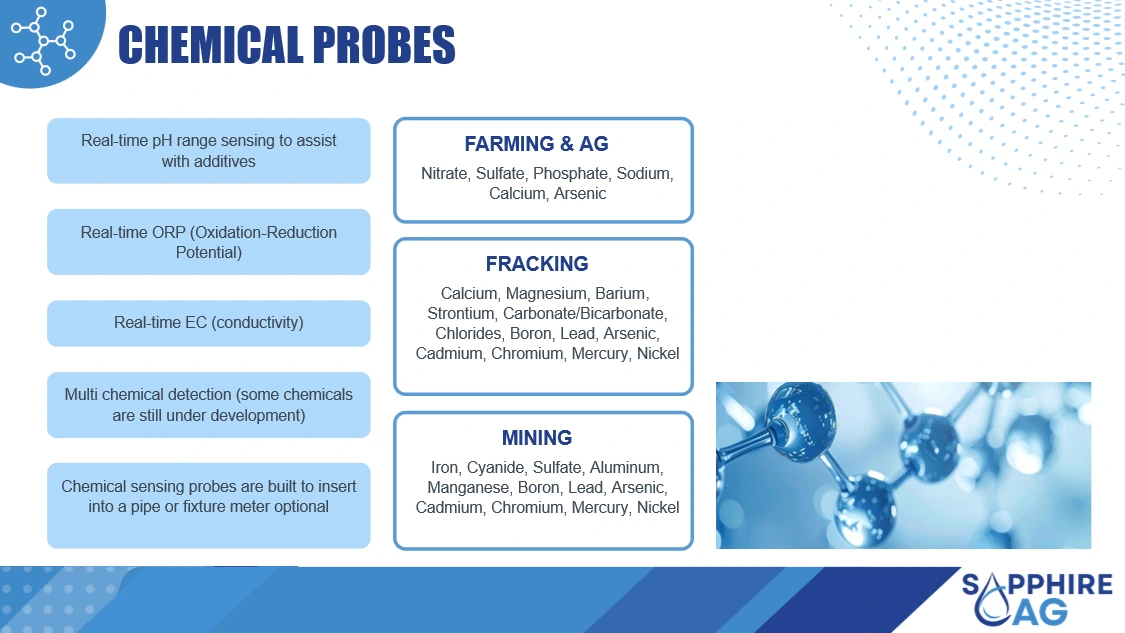

Our family of sensors measures a group of chemicals in fluids. The element design is tuned to the test requirements of each chemical group. The Farming & Ag group senses for nitrate, sulfates, potassium, sodium (salts), arsenic and calcium. Oil & Gas is a different group, as is Mining.
It is solid-state sensing technology. This design reduces the limitations of conventional liquid-type chemical sensors, and enables robust operation across a range of demanding environments.
Our chemical probes have a life span of several months to years, depending on contact with the fluid and test intervals. The Sapphire Ag sensor is therefore rechargeable, replaceable and/or reusable after cleaning the removable cartridge.
The Sapphire design extends in-use performance life cycle with an optional service and replacement cartridge plan.
The industrial stainless steel housing is ideal for harsh environments such as mining, fracking, compost and waste sites.
Key Features
- pH and chemical monitoring in a small-footprint stainless steel tube
- Connects to the Sapphire Ag telemetry unit, which supports real-time results
- Continuous In-Situ monitoring of dissolved chemicals by element family
- Design supports an extended life cycle of the housing with reusable cartridges
- Real-time adjustment and compensation to keep sensors calibrated over an extended period
- Realtime compensation for temperature and pressure to enhance accuracy
- M-12 Modbus communication port
- Standard MNPT 2" to source enables simple installation to source liquid
- Customizable to a customer's unique application
- WaterSen Portal database and reporting tools, available 2027
Specifications
Technical Specifications
Subject to 2027 updates.
- Accuracy
- To ±3%
- Measure range
- 0% to 100%
- Maximum water pressure
- 75 PSI (1000 PSI as an upgrade option)
- Liquid temperature (water)
- 32°F to +122°F (0°C to 50°C)
- Signal output
- RS-485
- Input voltage
- 12 to 24 VDC
- Housing
- Stainless steel
- Dimensions
- Length 10.35 x width 2.36 x 2.36 inches
- Connection
- MNPT (standard, with option to customize)
- Availability
- Patent pending, limited 2026 availability; available 2027 in quantity
Water Quality Measurement Range
Lower to upper range.
- pH
- 4 to 9
- Nitrate
- 0.6 to 60,000 ppm
- Sulfate
- 0.03 to 9,600 ppm
- Phosphate
- 0.02 to 9,500 ppm
- Sodium
- 1 to 5,000 ppm
- Calcium
- 0.1 to 4,000 ppm
- Potassium
- 0.3 to 39,000 ppm
